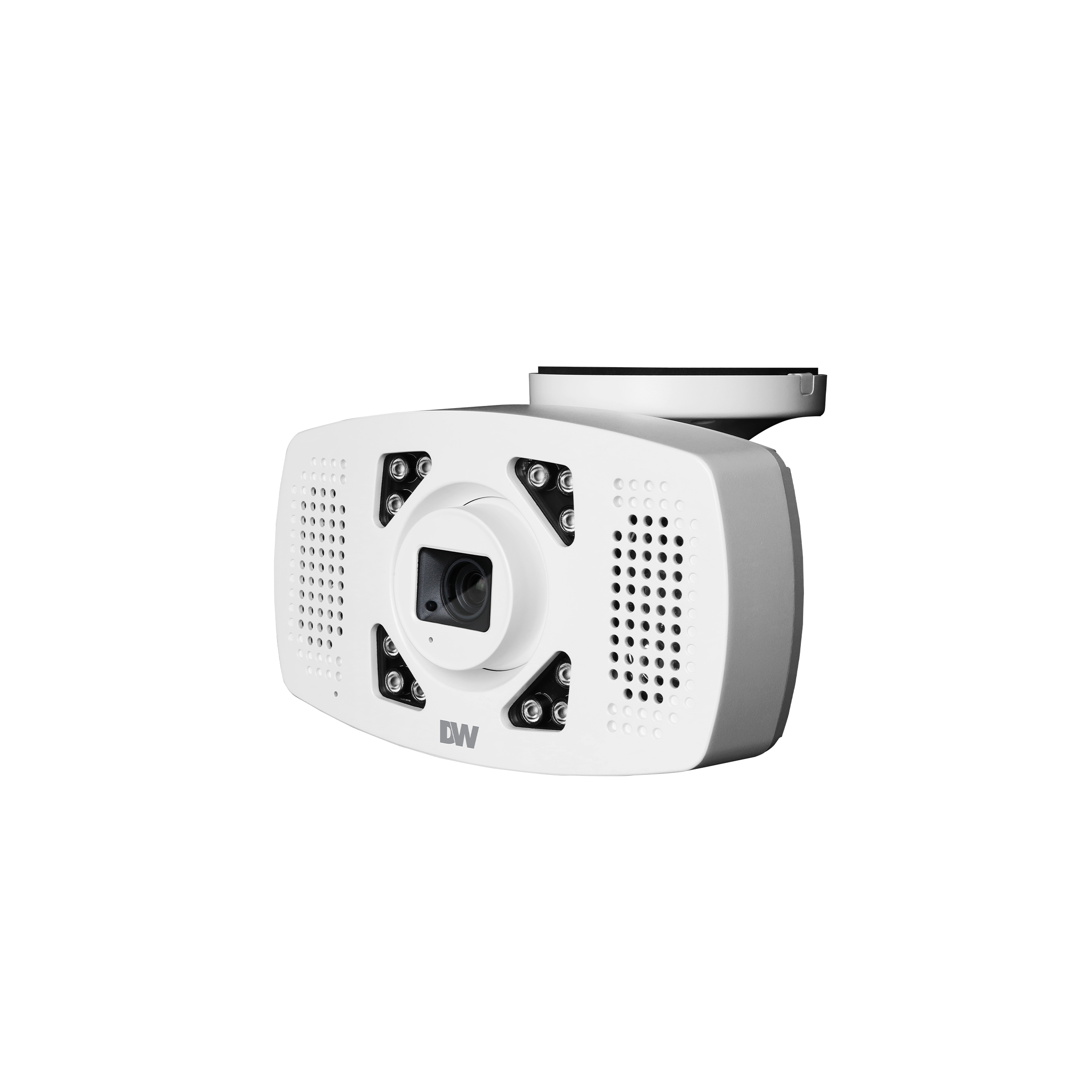

DWC-XSBF08LiF

MEGApix® Ai DWC-XSBF08LiF 4K Bullet IP Camera This AI-powered camera combines vivid low-light color, real-time object detection across 40 zones, and active deterrence with flashing LEDs, white light, and two-way audio. It features a motorized 6–22mm p-iris lens, True WDR, Smart DNR™, and 130' Smart IR™. Rugged and NDAA/TAA compliant, it’s built for demanding security environments.
Features
  • Proactive Deterrence: Built-in white light illumination, flashing red/blue LEDs, and a 14-watt speaker actively deter intruders before incidents occur.
  • Smart Ai Detection: Deep learning analytics with up to 40 customizable detection zones reduce false alarms and improve response accuracy.
  • Exceptional Image Quality: 4K resolution at 30fps, Star-Light Plus™ technology for color in near-total darkness, and True WDR deliver clear, detailed footage in any lighting.
  • Flexible Lens Control: Motorized 6–22mm vari-focal P-Iris lens with autofocus allows remote zoom and precise image tuning.
  • Efficient Bandwidth & Storage: Triple codec support (H.265, H.264, MJPEG) and smart recording optimize storage and streaming.
  • Two-Way Audio: Built-in microphone and speaker enable direct communication between the monitoring station and the camera location.
  • Easy Integration: Compatible with DW Spectrum® and OnVIF, plus alarm input/relay output for access control systems.
  • Rugged & Compliant: IP66 and IK10 rated for harsh environments, NDAA/TAA compliant for government use, and backed by a 5-year warranty.

Learn about how DW
solutions can work for you

View All Markets

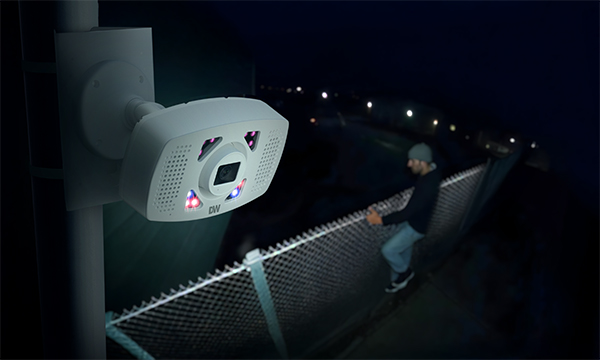

Ultimate all-in-one deterrent solution

DW’s XSBF bullet camera comes with white light LEDs, flashing alarm lights and built in speaker and microphone, making the camera an ideal complete solution, deterring crime and recording evidence.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Object Classification

DW's Ai software processes video streams to detect and classify every object appearing in the detection zone. Our Deep Learning engines perform object detection (DL Object tracker), automatically classifying the objects in the scene: people, cyclists, cars, buses and vans, trucks, motorcycles, bicycles and bags.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Ambarella CV22 and CV25 chips with CVflow®

Ambarella’s CV22 and CV25 chips combine image processing, real-time 30fps 4K and 5MP video encoding and CVflow® architecture to provide the deep neural network (DNN) processing required for the next generation of intelligent IP cameras.

Deep Learning

DW’s Ai intelligent algorithms offer deep learning with better object detection and identification of environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through increases efficiency and productivity, and reduces unnecessary costs.

Reduce false alarms

DW’s Ai accurately categorizes moving objects and people, distinguishing them from environmental items such as spiders, shaking shadows and moving lights. The result is a reduction in false alarm rates, saving storage and enabling more efficient monitoring.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Specifications

Color temperature Warm light
3300K
WL wavelength (lumen) 200lm
Active Pixels 3840 (H) x 2160 (V)
Frequency 50Hz
Image sensor 4K 1/2.8" CMOS sensor
Star-Light Plus™ sensor
Maximum resolution 4K
Minimum Scene Illumination in color 0.0 lux (B/W)
0.12 lux (color)
Test Video Output Local video output CVBS 1.0V p-p (75Ω), 16:9 aspect ratio
Total Pixels 3864(H) x 2228(V)
Lens
Advanced Lens Features Auto focus
Motorized zoom
P-iris
Focal Length 6 - 22mm
Horizontal Field of View (HFOV) 49.3° - 18.1°
Illumination Distance 130' range Smart IR™
Lens Type Vari-focal Lens
Vertical Field of View (VFOV) 10.2° - 24.3°
I/O
Event triggers Illegal login
Motion Alarm
Network disconnection
Schedule
Sensor detection
Temperature anomaly
I/O Alarm in/out 1 input
1 output
I/O Audio in/out 1 audio input selectable at a time
14-watt speakers built-in
1 input
1 microphone built-in
Intelligent Video Analytics
Advanced video analytics AI-based object tracking
Analytics filters Zones and lines, tamper, metadata, intrusion, line crossing, counting, counting lines, appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Day and night Auto day/night
Day (color)
Night (B/W)
De-fog Yes
Memory slot Micro SD/SDHC/SDXC class 10 card (card not included)
Up to 1TB micro SD / FAT32
Mirror/flip Yes
Motion Detection Yes
Operational Notifications Alarm output activation
Email
FTP server
SD card recording
Privacy Zones 16 programmable privacy masks
Sharpness Yes
Shutter Mode Anti-Flicker
Auto
Manual
Slow Shutter
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off
x10
x2
x3
x4
x5
x6
x7.5
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP IPv4
LAN 1000Base-T (1Gbps)
Network resolution H.264: 3840x2160, 2592x1944, 2560x1440, 1920x1080, 1280x720, 640x480, 640x360, 352x288, 352x240
H.265: 3840x2160, 2592x1944, 2560x1440, 1920x1080, 1280x720, 640x480, 640x360, 352x288, 352x240
MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240
Network Web Viewer Google Chrome® browser
Linux® OS
Mac® OS
Microsoft Edge® browser
Mozilla Firefox® browser
Safari® browser
Windows OS
Protocol DDNS
DHCP
DNS
FTP
HTTP
HTTPs
ICMP
NTP
ONVIF
RTP (UDP/TCP)
RTSP
SMTP
SNMPv1/v2/v3 (MIB-2)
SSL
TCP/IP
UDP
Zeroconf (AutoIP)
Security 802.1x
Digest authentication (ID/PW)
HTTPS (TLS)
IP filtering
Stream Speed Up to 30fps at all resolutions
Streaming Capability Triple Streaming (3rd stream MJPEG only)
Video Bitrate 100Kbps ~ 25Mbps, multi-rate for preview and recording
Video Compression Type H.264
H.265
MJPEG
Video Management Software Any ONVIF conformant CMS
DW Spectrum®
Environmental
Compliance CE  FCC  NDAA Comp  ONVIF  TAA Compliance  UL Listing
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) 10.23" x 10.19" x 6.14" (260 x 259 x 156mm)
Camera Weight 8.15 lbs (3.7 kg)
Housing Bullet
Housing Color White
IK rating IK10 Rated
IP rating Weather Resistant (IP66)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) 5M
Cable type #18
Power Requirements High power PoE injector included
PoE
General
Warranty 5 Year Warranty

Accessories

DWS-ENT12M1C
DWS-ENT12M1C DW Spectrum Enterprise VSaaS Scalable Cloud Video Surveillance Digital Watchdog
Learn more
DWS-myDW12M1C
DWS-myDW12M1C myDW Surveillance Health Monitoring | Cloud-Based System Alerts & Clip Sharing – Digital Watchdog
Learn more
DWC-PMB-WLW
DWC-PMB-WLW Pole Mount Bracket – White | Durable Outdoor Camera Mounting Solution
Learn more
DWC-WMJUNCW
DWC-WMJUNCW White Junction Box | Weatherproof Mount for Digital Watchdog Cameras
Learn more

Documents

Title Type
MEGApix Ai product brochure
pdf Download
DWC-XSBF08LiF datasheet - French
pdf Download
DWC-XSBF08LiF datasheet - Spanish
pdf Download
DWC-XSBF08LiF datasheet
pdf Download
DWC-XSBF08LiF CAD drawing
dwg Download
DWC-XSBF08LiF A&E specifications
docx Download
DWC-XSBF08LiF quick setup guide
pdf Download
DWC-XSBF08LiF user manual
pdf Download
MEGApix Ai plugin user manual
pdf Download

Software

Title Type Release Notes Version Update Date Compatibility Size
MEGApix Ai firmware vA15.3.3_20250617 img vA15.3.3_20250617 08/07/2025 271.60 MB Download
MEGApix Ai plugin v1.1.147 enc v1.1.147 05/27/2025 152.81 MB Download
DW IP Finder v4.4.23 for Linux OS run v4.4.23 09/10/2024 46.11 MB Download
DW IP Finder v4.4.23 for Windows OS exe v4.4.23 07/01/2024 27.80 MB Download
